BMW F10 / F07 / F01 / F25 / F15 · 2009-2018 · Witson YB1261
Your BMW Gauges Still Look Like 2010 - Here Is the 12.3" Digital Cluster That Drags the Cabin Into the Present
Listen, you have probably already spent money on your BMW in the right places. Better tyres, maybe a CarPlay box, a fresh set of pads. And yet every time you sit down, the thing staring back at you is the same pair of analogue needles from the Bush era of dashboard design - two dials, a sliver of screen at the bottom that displays one line of text at a time, and no way to show you anything useful without cycling through eight menus with the iDrive knob.
Here is the deal - in 2026 the cabin of an F10, F07 or F15 is the oldest part of the car, and the instrument cluster is the single reason why. Not the drivetrain. Not the chassis. The cluster. Swap it for a 12.3" Digital Speedometer Instrument Cluster (YB1261) and the entire interior suddenly reads as a modern car, because the one surface your eyes land on fifty times a drive finally looks like it belongs to this decade.
TL;DR
The analogue cluster in BMW F-series cars - 5 Series F10/F11/F18 and GT F07, 6 Series F06/F12/F13, 7 Series F01/F02/F03/F04, X3 F25, X4 F26, X5 F15 and X6 F16 - is the last genuinely dated thing in an otherwise excellent cabin. The Witson YB1261 replaces it with a 12.3" QLED anti-glare panel at 1920 x 720, driven by a dedicated quad-core T507 processor at 1.5 GHz running a Linux real-time OS. Boot time after ignition is 0.5 seconds, switching between Comfort, Sport and Eco themes is instant, and it reads your car's original CAN-BUS data directly - so fault lights, door status, oil level, TPMS warnings and factory HUD all keep working. No coding, no programming, fully reversible. It is one of very few upgrades where the car is genuinely better afterwards and no one can tell you touched it.
The Problem: Analogue Needles in a Digital World
The F-series cluster was designed when the iPhone 4 was new. It does speed and RPM beautifully, and it does almost nothing else. Want your instant fuel consumption? Buried. Tyre pressures? Buried deeper. Door status, oil level, service detail, altitude? Some of it is not on the cluster at all - it lives in the iDrive screen, which is exactly where you should not be looking while driving.
It also ages badly. The dial faces fade, the needles get lazy, and the little centre display looks like a calculator from a service station forecourt. Every newer BMW you park next to has a fully digital dash. Yours does not. That gap is not going away on its own.
Agitation: What Happens If You Buy the Cheap Cluster
Trust me, this market has a trap in it, and it is the same trap as every other car-electronics category. You will find a 12.3" cluster online for a fraction of the price, in a listing with identical photos and no brand behind it. What arrives is a generic board with an unnamed processor and a Linux build that was never properly integrated with BMW's protocol stack.
The failure modes are predictable. The needles lag half a second behind the engine, so the tachometer lies to you during a shift. Warning lights do not come through - sometimes not even the important ones. The boot takes three or four seconds, and on a cold morning it will sometimes just reboot itself mid-drive, which is a genuinely alarming thing to have happen at 70 mph. Cabin heat stresses the display, the panel starts to ghost, and by the following summer you are pulling it back out and explaining to a forum why your dashboard had a short and interesting life.
You did not buy a dashboard. You bought a liability that sits 40 cm from your face.

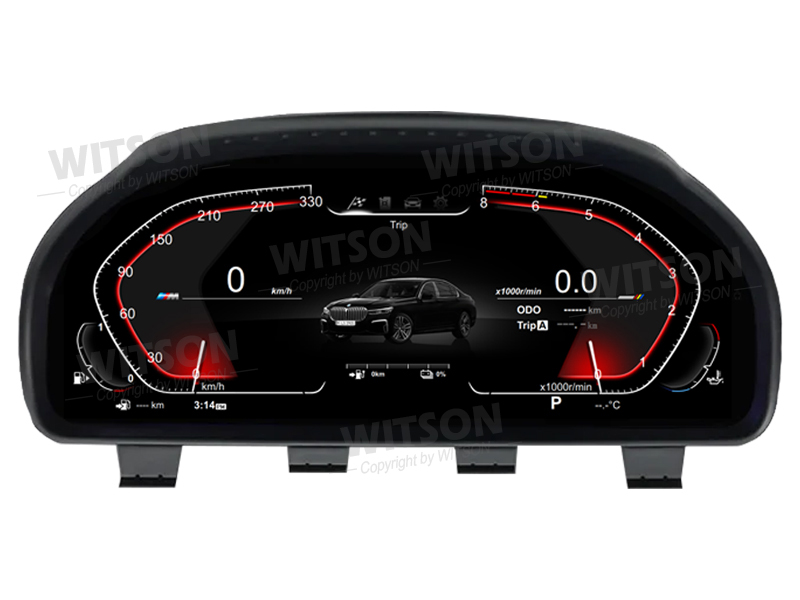

Core Features: What the YB1261 Actually Does
1. It Reads Your Car's Original Data - Nothing Gets Lost
This is the whole ballgame with a cluster, and it is where cheap units fall apart. The YB1261 talks to your BMW over the car's original CAN-BUS protocol, reading data directly instead of guessing at it. That means your fault code indications, door-open status, oil level, air-conditioning information, tyre pressure warnings and service data are all retained and displayed accurately. You are not replacing your car's brain. You are giving it a better face.
2. Factory HUD and Original Controls Stay Intact
If your car was specified with the factory head-up display, that keeps working on the F10, F11, F18, F25 and F26 - the projector still throws speed and nav prompts onto the windscreen exactly as before. Settings on the cluster are reached through the existing iDrive controller and steering wheel buttons, with no extra module to buy and wire in. Screen brightness adapts automatically to ambient light, and you can also adjust it manually using the factory knob.
3. 12.3" QLED, 1920 x 720, Blue-Ray Anti-Glare
The panel is a wide 12.3-inch QLED unit at 1920 x 720 with an anti-glare treatment, which matters more than you would think - a glossy dashboard screen becomes a mirror the moment the sun drops behind you. High pixel density on a wide format means the speed readout, the map-type data panel and the warnings can all be on screen at the same time without crowding each other.
4. Dedicated Quad-Core Hardware and a Real-Time Linux OS
This is the engineering detail that separates a good cluster from a bad one. The YB1261 runs a Linux-based real-time system rather than a general-purpose Android layer, on a dedicated T507 quad-core processor clocked at 1.5 GHz, with 1GB RAM and 4GB ROM. A real-time OS is built for exactly this job: it prioritises the data stream and the needle animation, so it does not stutter when something else is happening. Startup after ignition is 0.5 seconds. You turn the key, and the instrument is simply there.
5. More Information Than the Factory Cluster Ever Showed
Because it is reading live CAN-BUS data on a big screen, the YB1261 surfaces things your original cluster never bothered with: altitude, instantaneous fuel consumption, body tilt angle, trip computer and odometer data, alongside the usual speed, tachometer, and fuel and temperature gauges. On long drives this turns the cluster into a genuine information panel rather than two dials and a shrug.
6. Three Themes, Instant Switching
You get selectable layouts - Comfort (blue), Sport (red) and Eco (gold), with Simple and Technology layouts on some software builds - and switching between them is immediate. Sport mode actually changes the character of the display, which is the kind of small thing that makes a car feel newer than its registration plate suggests.
7. Plug and Play, No Coding, Fully Reversible
There is no laptop, no ISTA session, no coding dongle, and no "brush the computer" step. The unit uses the original connectors and original mounting points, so installation is non-destructive. Your factory cluster goes in a box in the garage, and if you ever sell the car - or want it back to standard for a warranty conversation - it goes back in. That reversibility is worth real money.
Which BMW Does This Fit? Check Your Chassis Code
| Model | Chassis codes | Years | Factory system and notes |
|---|---|---|---|
| 5 Series GT | F07 | 2009 - 2016 | CIC / NBT |
| 5 Series | F10, F11, F18 | 2010 - 2017 | CIC / NBT - factory HUD supported |
| 6 Series | F06, F12, F13 | 2011 - 2017 | CIC / NBT |
| 7 Series | F01, F02, F03, F04 | 2009 - 2015 | CIC / NBT - factory HUD supported |
| X3 | F25 | 2011 - 2017 | CIC / NBT - factory HUD supported |
| X4 | F26 | 2011 - 2017 | CIC / NBT - factory HUD supported |
| X5 | F15 | 2014 - 2018 | NBT / EVO - factory HUD not supported |
| X6 | F16 | 2014 - 2018 | NBT / EVO - factory HUD not supported |
Two things that catch people out. First, hybrid and plug-in hybrid BMWs are not compatible - the powertrain data stream is different and this cluster will not read it. Second, on X5 F15 and X6 F16 the factory head-up display is not supported, while on F10, F11, F18, F25 and F26 it is. If you have a HUD and an F15, check with the seller before you buy rather than after.
Standard vs High-Performance: What the Extra Money Actually Buys
Clusters look identical in listing photos and are nothing alike underneath. Here is the honest breakdown of where the money goes.
| Specification | Standard / Budget Build | High-Performance Build (Witson YB1261) |
|---|---|---|
| Display panel | 12.3" IPS LCD, glossy finish | 12.3" QLED, blue-ray anti-glare, 1920 x 720 |
| Operating system | Generic Linux or Android hybrid build | Linux-based real-time OS, anti-crash |
| Processor | Unnamed chip, throttles under load | Dedicated T507 quad-core at 1.5 GHz |
| Memory | 1GB RAM + 4GB ROM, often relabelled | 1GB RAM + 4GB ROM, verified firmware build |
| Boot time after ignition | 2 - 5 seconds, occasional mid-drive reboot | 0.5 seconds, stable under load |
| Needle and animation response | Visible lag and dropped frames | Smooth, dedicated graphics path |
| Original protocol coverage | Partial - some warnings and fault lights lost | Full - fault codes, door status, oil level, TPMS, air conditioning retained |
| Factory HUD retention | Usually lost | Retained on F10, F11, F18, F25, F26 |
| Display themes | One fixed layout | Comfort (blue), Sport (red), Eco (gold) |
| iDrive and steering wheel control | Sometimes needs an extra adapter module | Native, no extra module |
| Coding or programming required | Often yes | No - plug and play |
| Reversible to the stock cluster | Varies, sometimes not | Yes - original connectors and mounts |
| Warranty | 6 - 12 months, seller-dependent | Up to 24 months - confirm with the seller |
Installation and Compatibility: What Actually Happens on the Day
The good news first: the YB1261 uses the original wiring connectors and original mounting points. There is no cutting, no splicing, no coding, and nothing that has to be programmed afterwards. If you have ever swapped a head unit, you can do this. A garage will typically charge for one hour of labour.
What stays working after the swap
Fault code and warning light indications, displayed accurately
Door-open status, oil level and air conditioning information
Tyre pressure monitoring warnings
Trip computer, odometer and fuel consumption data
Factory head-up display, on F10, F11, F18, F25 and F26
iDrive controller and steering wheel button operation of cluster settings
Automatic and manual screen brightness control via the factory knob
Before you start
Budget around an hour. You will need plastic trim removal tools and a Torx driver set, and the steering column shroud and lower dash trim come off first. Disconnect the battery negative terminal, work slowly because the clips on a ten-year-old BMW dash are not forgiving, and lay the original cluster somewhere padded. Verify your chassis code and factory system (CIC, NBT or EVO) before ordering - the seller needs that information, and the wrong harness variant is the single most common cause of a "it does not work" email. If you are not comfortable around interior trim, pay a local installer; the job is straightforward but the trim is expensive to replace.
Buying Checklist: How to Avoid a Bad Cluster
Run these eight checks before you pay. They take ten minutes and they will save you a summer of regret.
Give the seller your chassis code and factory system. F10 with NBT is not the same product as F15 with EVO. A seller who does not ask is a seller who does not know.
Ask for a real installation video on your exact model. Not a generic render, not a stock photo - footage of the cluster running in the car you own.
Confirm whether your factory HUD survives. Supported on F10, F11, F18, F25 and F26; not supported on F15 and F16. Get it in writing.
Ask how the unit handles CAN-BUS protocol changes. Full protocol coverage is the difference between a cluster that shows every warning and one that quietly drops the ones that matter.
Check that it is reversible. Original connectors are the requirement. If it needs cutting, walk away.
Confirm the panel type and resolution. "12.3 inch HD" in a title means nothing. QLED or IPS, and 1920 x 720, or it is not the panel you think it is.
Read reviews for lag, rebooting and warning lights specifically. Those three complaints tell you more than the star average ever will.
Verify the warranty and who honours it. A manufacturer with its own factory and a documented burn-in test is a very different proposition from an anonymous storefront with a seven-day return window.
The unit in this article: a 12.3" QLED 1920 x 720 digital instrument cluster with a Linux real-time OS, 0.5-second startup, Comfort, Sport and Eco themes, full original CAN-BUS data retention, factory HUD support on F10, F11, F18, F25 and F26, and true plug-and-play fitment with no coding - for BMW 5 Series F07, F10, F11, F18, 6 Series F06, F12, F13, 7 Series F01, F02, F03, F04, X3 F25, X4 F26, X5 F15 and X6 F16.
FAQ
Will my CarPlay or Android Auto show up on this digital cluster?
No - and that is by design, not a missing feature. This is an instrument cluster, not a multimedia head unit. Its job is to display your car's own data: speed, RPM, fuel, temperature, warnings, trip information, altitude and instant fuel consumption. Media information such as playlists, Bluetooth tracks and radio stations does not render on the cluster, and neither does a CarPlay or Android Auto interface. Your CarPlay keeps living where it already lives - on your factory iDrive screen or your aftermarket head unit. If what you actually want is CarPlay in a 2009-2018 BMW, you want a head unit replacement, not a cluster; if you want the dashboard to look and read like a modern BMW, this is the part you buy. Plenty of owners do both.
Do I need coding or programming, and can I put my original cluster back?
No coding, no programming, no laptop, no "brush the computer" step - the cluster reads your car's original protocol directly through the supplied harness. That also means it is fully reversible: the original connectors and mounting points are used, so your factory cluster can go back in at any time. Keep it boxed in the garage. If you ever sell the car, or need to return it to standard for a warranty conversation, you are one hour of trim work away from stock.
Which system does my car need - CIC, NBT or EVO - and does my factory HUD still work?
The 5 Series GT F07, 5 Series F10/F11/F18, 6 Series F06/F12/F13, 7 Series F01/F02/F03/F04, X3 F25 and X4 F26 run CIC or NBT systems and all of these support retention of the factory head-up display. The X5 F15 and X6 F16 run NBT or EVO, and on those two the factory HUD is not supported. Everything else - warning lights, door status, oil level, TPMS, air conditioning data and iDrive control - is retained across the range. Check your chassis code and give it to the seller before ordering, because the harness variant depends on it.
Do the original warning lights, TPMS and iDrive controls still work?
Yes. Because the cluster reads the car's original CAN-BUS data rather than estimating it, fault code indications, door-open status, oil level, air-conditioning information and tyre pressure warnings are all displayed accurately - this is exactly the area where cheap clusters fail, and it is the main reason to buy a properly integrated unit. Cluster settings are reached through your existing iDrive controller and steering wheel buttons, with no additional adapter module to purchase. Screen brightness adjusts automatically to ambient light and can also be set manually using the factory knob.
Will it fit a hybrid or plug-in hybrid BMW?
No. Hybrid and plug-in hybrid models are not compatible with this cluster, because their powertrain data stream is structured differently and the unit will not read it correctly. The YB1261 is designed for the conventional petrol and diesel versions of the listed chassis codes. If you own an ActiveHybrid 5, an X5 xDrive40e or a 7 Series ActiveHybrid, this is not the product for you - tell the seller your exact model and they can advise on alternatives.
Final Word
As my experience with the F-series goes, these cars still drive beautifully - the steering, the chassis balance, the way a straight-six settles at cruising speed. What they lack in 2026 is a dashboard that looks like it was designed after the invention of the smartphone.
Do not paper over it with a phone mount and a CarPlay box. Fix the thing your eyes actually rest on. Get the 12.3" QLED panel, a real-time Linux system with a 0.5-second boot, full original data retention, no coding, and a harness that lets you put it all back if you ever change your mind - and your 2012 BMW will feel current every single time you turn the key.
